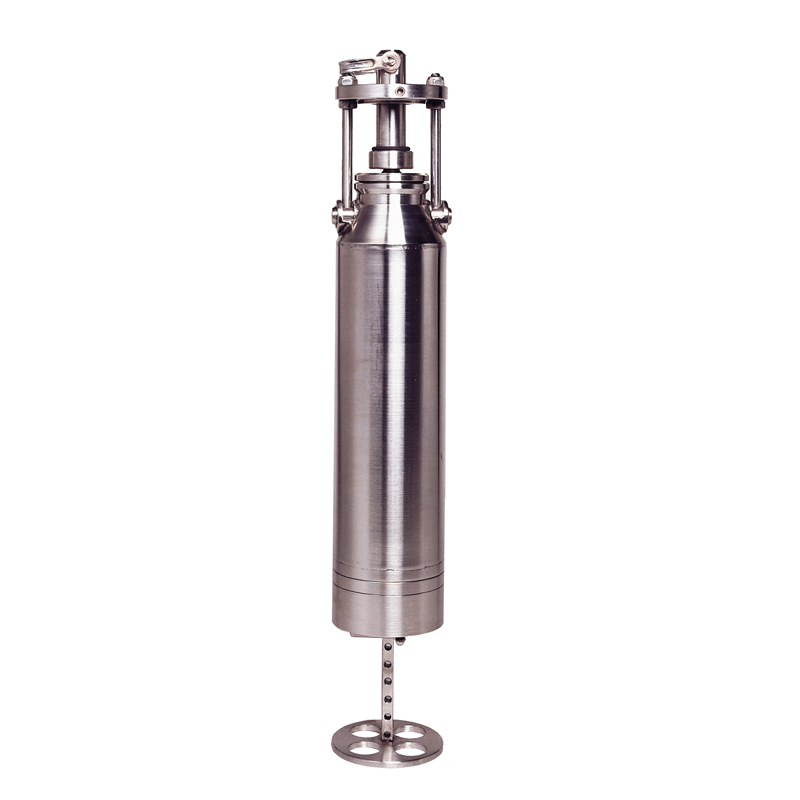

Universal Sampler - 14875-0
Methods
ISO 3170
A valve at the bottom of the universal sampler is actuated by an adjustable bottom sensor, allowing true bottom sampling between 1 and 35 cm above the bottom of the bulk container.
The valve at the top of the sampler is actuated by a snatch cord and latches in the open position.
A "Top Hat" prevents liquid running down the line from contaminating the contents of the sampler.
Universal Sampler - 14875-0
Features
- Bottom or Multi-Level sampling
- Automatic opening and closing bottom valve
- 1 to 35 cm adjustable tank bottom sensor
- Top valve latches open
Information
Details
| ISO 3170 | Petroleum liquids - Manual sampling |
|---|
Details
| Capacity | 500 ml |
|---|---|
| Material | Stainless steel |
| Sampling Range (height from bottom) | 1 to 20 cm |
| Diameter | 6.4 cm |
| Length (probe retracted) | 34.5 cm |
| Weight | 2 kg |
| CCCN Code | Tariff 90178090 |
