Seta Semi-Automatic Tag Flash Point Tester - 13220-2
Methods
ASTM D56
ASTM D3934
ASTM E502
BS 3900-A8 & BS 6664-1 & ISO 1516
BS 3900-A9 & BS 6664-2 & ISO 1523

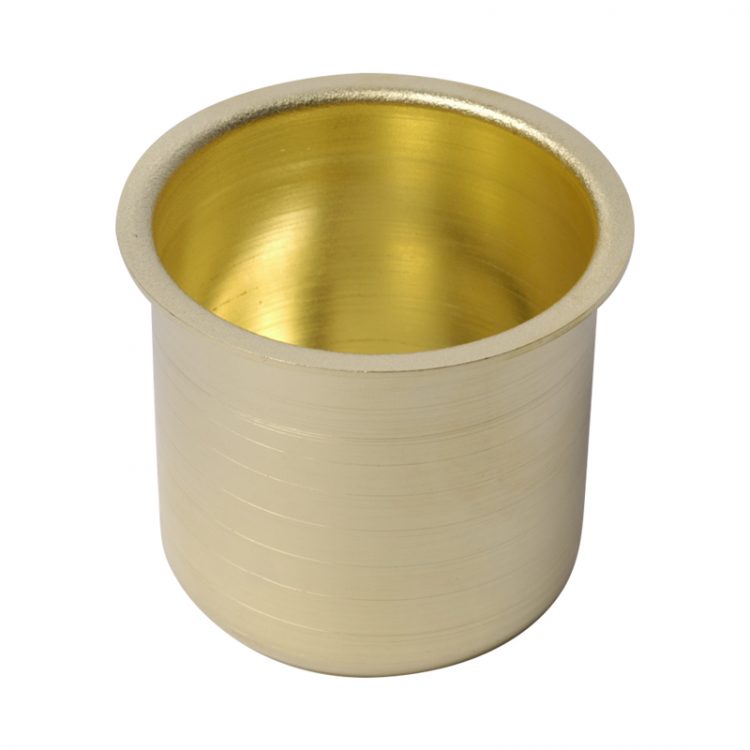

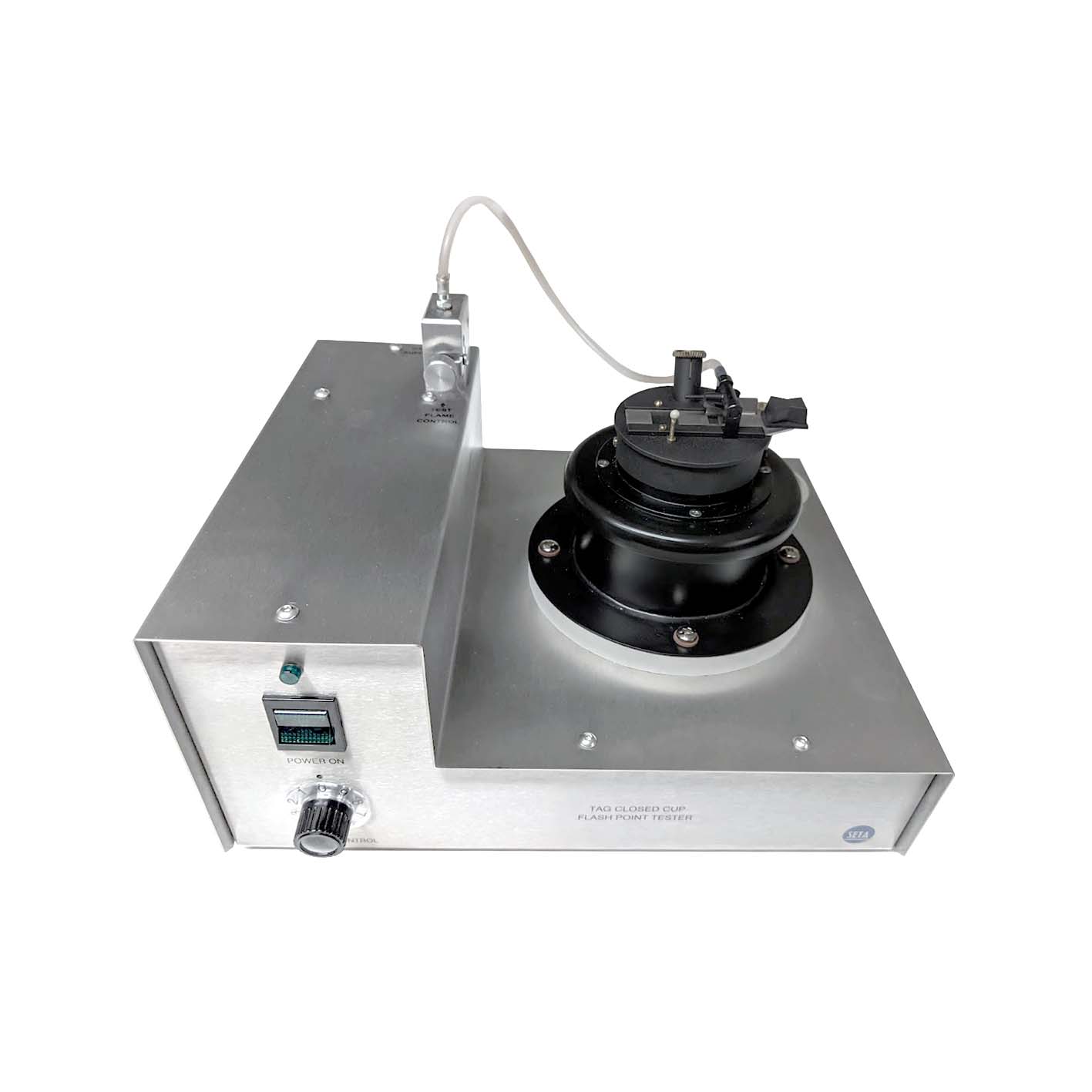

The Seta Semi-Automatic Tag Closed Cup Flash Point Tester consists of a stainless steel case in which is mounted an electrical heater to heat a test cup, liquid bath and the lid and shutter assembly. The lid and shutter assembly has a test flame size bead (4 mm diameter) mounted on it.
A mains gas inlet block is provided at the rear of the upper section of the instrument case. The Tag Flash Point Tester comprises a 10 mm diameter hose nozzle and a pinch valve for gas flow control from a mains supply.
A controller has the facility to allow the user to vary the rise rate of the temperature.
Learn more about flash point testing and which instrument you should be using >
Seta Semi-Automatic Tag Flash Point Tester - 13220-2
Features
- Ambient to 93 °C
- Variable temperature rise rate
- 500 ml Bath
- Bath Capacity: 500ml approx
- Bath Fluid: Water or Silicone Fluid
Information
Details
The test flame uses either mains gas or can operate from the optional Portable Gas Tank (13667-0). The case is manufactured from stainless steel, with an integral drip tray and bath overflow.
Supplied with;
Instruction manual
Mains lead
Details
| ASTM E502 | Standard Test Method for Selection and Use of ASTM Standards for the Determination of Flash Point of Chemicals by Closed Cup Methods |
|---|---|
| ASTM D56 | Standard test method for flash point by Tag closed cup tester |
| ASTM D3934 | Flash/No Flash Test-Equilibrium Method by the Closed-Cup Apparatus |
| BS 3900-A8 & BS 6664-1 & ISO 1516 | Methods of test for paints. Tests on liquid paints (excluding chemical tests). Test for flash/no flash (closed cup equilibrium method) |
| BS 3900-A9 & BS 6664-2 & ISO 1523 | Methods of test for paints. Determination of flashpoint (closed cup equilibrium method) |
Details
| Cup type | Closed Cup |
|---|---|
| Temperature range | Ambient to 93 °C |
| Ramp rate | Variable, manually controlled |
| Bath Fluid | 500 ml Water or Silicone Fluid |
| Power | 500 W maximum |
| Voltage | 110/120 V, 50/60 Hz 220/240 V, 50/60 Hz |
| Size (HxWxD) | 33 x 31 x 29 cm |
| Weight | 5 kg |
| CCCN Code | Tariff 90268020 |
Methods
ASTM D56
ASTM D3934
ASTM E502
BS 3900-A8 & BS 6664-1 & ISO 1516
BS 3900-A9 & BS 6664-2 & ISO 1523
