Product

Stick Conductivity Meter for Lubricants and Oils (JF-1A-ST-1) - 99581-0

Methods
ASTM D2624
IP 274

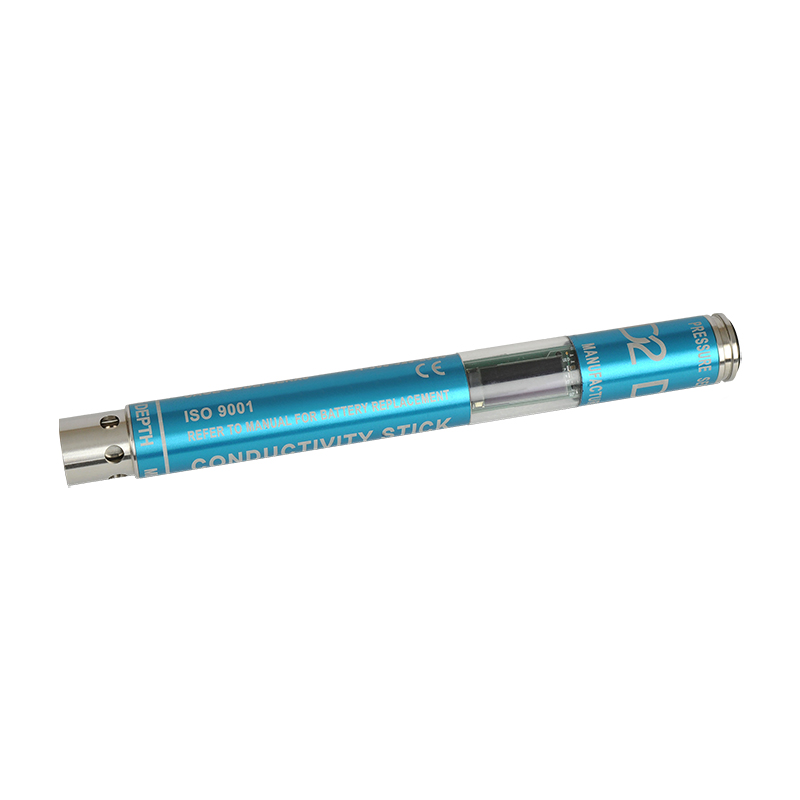

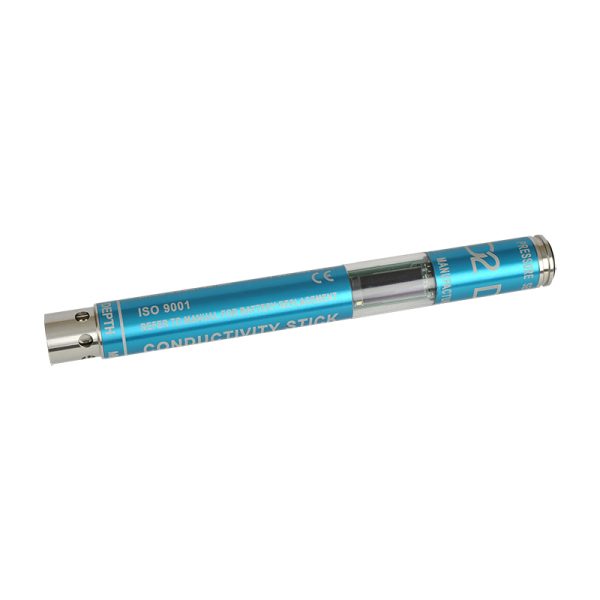

The Seta D2 Stick Conductivity Sensor (JF-1A-ST-1) meets the requirements of ASTM D2624. It provides accurate and rapid conductivity measurement of Lubricants and Oils and is specifically designed for testing low conductivity.

The Stick Conductivity Sensor allows users to measure samples in any container, such as a bucket or glass jar, offering an accurate, portable solution for measuring fuels in tanks, in the field or in the laboratory.

AC measurement technology allows samples to be measured without needing to relax the fuel. It is also unaffected by bias drift resulting in less opportunity for error.

Calibration and verification is quick and easy to perform with an IRD data link, there is no need to open the unit.

Stick Conductivity Meter for Lubricants and Oils (JF-1A-ST-1) - 99581-0

Features

  • Easy to use, one button design
  • Durable and ergonomic
  • Suitable for use in harsh environments
  • AC Measurement Technology, no need to relax the fuel
  • Large one button design - easy operation
  • Long life 'AAA' batteries, field replaceable
  • IRD data link for calibration and verification
  • Extended operation temperature range from -30 °C to 50 °C
  • USB 5 point validation and calibration simulator available

Information

Details

ASTM D2624 Measurement of Electrical Conductivity of Distillate Fuels
IP 274 Measurement of Electrical Conductivity of Distillate Fuels

Details

Temperature Range-30 to 50 °C
Storage Range-35 to 55 °C
Resolution0.1 pS/m and 0.1 °C
Sensor Tip316 SS/PEEK/VITON
Measurement Range0-2,000 pS/cm
Accuracy Temperature+/- 0.5 °C
Size (HxWxD)20.7 x 2.3 cm
Weight140 g
CCCN CodeTariff 90268020
