Product
Seta Silver and Copper Corrosion Bath - 11405-0
Methods
ASTM D130
ASTM D4048
ASTM D7667
ASTM D7671
IP 112
IP 154
IP 611
BS EN ISO 2160 & BS 2000-154 & ISO 2160
DIN EN ISO 2160
ISO 2160

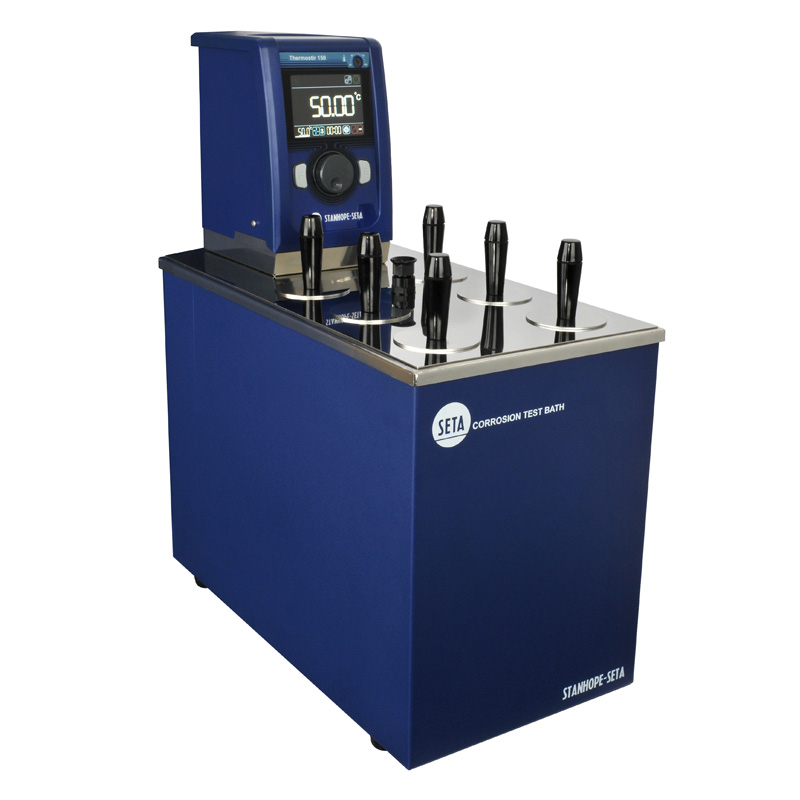

The Seta Silver and Copper Corrosion Bath is a bench top, stainless steel water or oil bath. Digitally controlled to ±0.1 °C over a temperature range of ambient +5 °C to 150 °C, the bath is used to determine the corrosive effects of fuels, lubricants and other hydrocarbon products on copper and silver.
The bath features 6 test stations, each with a lid and hook for suspending a Corrosion Pressure Vessel (11500-0) or a test tube Support Assembly (11422-0). You can use any combination of copper corrosion vessels and test tube supports for maximum test flexibility.
Features
- Ambient +5 to 150 °C
- 19 litre bath
- 6 test stations
- Programmable digital temperature controller
- Digital timer
- Over temperature cut out and liquid level float switch
- Maximum liquid level outlet fitting
- Small footprint
Information
Details
Ease of use:All functions on the Silver and Copper Corrosion bath are accessed via the dial and indicator icons are shown on the colour display of the thermostir.
Enhanced safety:
Safety features include a float-operated low liquid level cut out. Users are made aware if the level of liquid in the bath falls below the allowable level with a warning display on the thermostir screen and an audible alarm, the heater automatically switches off.
An adjustable over-temperature cut out protects the instrument from overheating. If the bath temperature exceeds the over-temperature cut out temperature, again a warning displays on the thermostir screen, an audible alarm sounds and the heater automatically switches off.
Calibration and verification:
Calibration of the Corrosion Bath can be performed in the field, eliminating the costs and time associated with sending the instrument to a service centre.
Service and maintenance:
The rugged design ensures minimal operational maintenance is needed.
Supplied with: 6 x lids, mains lead, instruction manual.
Details
BS EN ISO 2160 & BS 2000-154 & ISO 2160 | Copper Corrosion from Petroleum Products by the Copper Strip Tarnish Test |
---|---|
ASTM D4048 | Standard test method for detection of copper corrosion from lubricating grease |
IP 112 | Determination of corrosiveness to copper of lubricating grease - Copper strip method |
ISO 2160 | Petroleum products - Corrosiveness to copper - Copper strip test |
IP 154 | Corrosiveness to Copper - Copper Strip Test |
ASTM D130 | Standard Test for Corrosiveness to Copper from Petroleum Products by Copper Strip Test |
ASTM D7671 | Corrosiveness to Silver by Automotive Spark–Ignition Engine Fuel–Silver Strip Method |
IP 611 | Corrosiveness to silver of automotive gasoline - Silver strip method |
ASTM D7667 | Corrosiveness to Silver by Automotive Spark-Ignition Engine Fuel—Thin Silver Strip Method |
DIN EN ISO 2160 | Petroleum products. Corrosiveness to copper. Copper strip test |
Details
Temperature range | Ambient +5 to 150 °C |
---|---|
Stability | ±0.1 °C |
Bath fluid | Water or Oil |
Bath capacity | 19 litres |
Apertures | 6 x 52 mm |
Heater power | 1500 W |
Voltage | 110/120 V, 50/60 Hz 200/220 V, 50/60 Hz |
Size (HxWxD) | 51 x 23 x 46 cm |
Weight | 13.3 kg |
CCCN Code | Tariff 84198998 |
Methods
ASTM D130
ASTM D4048
ASTM D7667
ASTM D7671
IP 112
IP 154
IP 611
BS EN ISO 2160 & BS 2000-154 & ISO 2160
DIN EN ISO 2160
ISO 2160
Industries
Lubricants
chevron_rightSpares and accessories for Seta Silver and Copper Corrosion Bath - 11405-0
![14119: Silver Corrosion Kit for Gasoline 14119: Silver Corrosion Kit for Gasoline](https://www.stanhope-seta.co.uk/wp-content/uploads/woocommerce-placeholder-750x750.png)
Silver Corrosion Kit for Gasoline - 11521-0
View accessory![14118: Copper Corrosion Kit for Diesel, Fuel Oil and Lubricants 14118: Copper Corrosion Kit for Diesel, Fuel Oil and Lubricants](https://www.stanhope-seta.co.uk/wp-content/uploads/woocommerce-placeholder-750x750.png)
Copper Corrosion Kit for Diesel, Fuel Oil and Lubricants - 11522-0
View accessory![Test Tube Holder - 11422-0 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/11422-0_Test_Tube_Holder-750x750.jpg)
Test Tube Holder - 11422-0
View accessory![Water Purifier - 15650-0 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/15650-0_Water_Purifier-750x750.jpg)
Water Purifier - 15650-0
View accessory![Viscometer Bath Oil 120 – 150 °C (20 litres) - 94632-0 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/94632-0_Viscometer_Bath_Oil-1-750x750.jpg)
Viscometer Bath Oil 120 – 150 °C (20 litres) - 94632-0
View accessory![Viscometer Bath Oil 80 – 120 °C (20 litres) - 94635-0 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/94635-0_Viscometer_Bath_Oil-1-750x750.jpg)

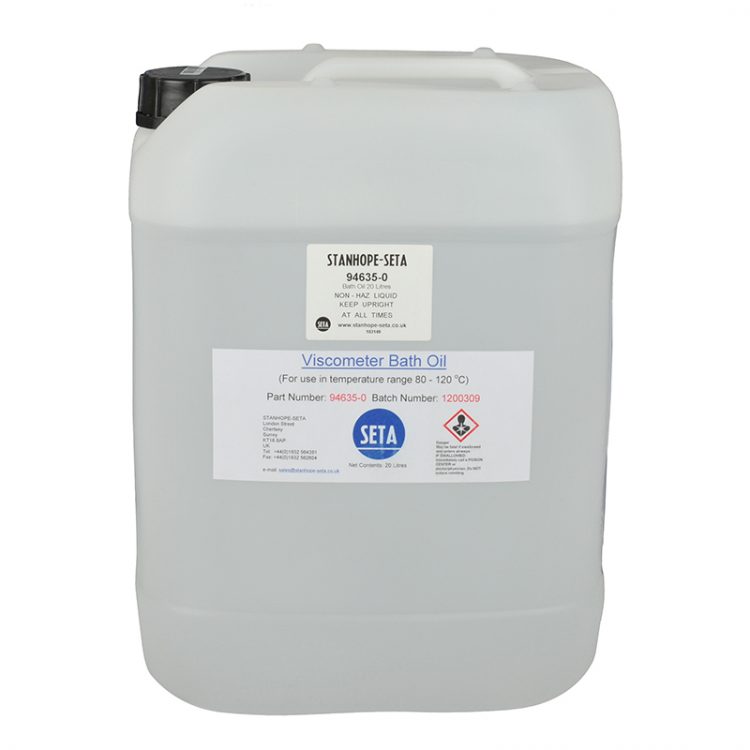

Viscometer Bath Oil 80 – 120 °C (20 litres) - 94635-0
View accessory![Thin Silver Strip Corrosion Kit - 11516-0 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/11516-0_Thin_Silver_Strip-750x750.jpg)
Thin Silver Strip Corrosion Kit - 11516-0
View accessory![Copper Corrosion Kit for Grease - 11519-0 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/11519-0_Copper_Corrosion_Kit-750x750.jpg)
Copper Corrosion Kit for Grease - 11519-0
View accessory![Copper Corrosion Kit for Gasoline and Jet Fuel - 11517-0 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/11517-0_Copper_Corrosion_Kit-750x750.jpg)
Copper Corrosion Kit for Gasoline and Jet Fuel - 11517-0
View accessory![Viscometer Bath Oil 40 – 85 °C (20 litres) - 94633-0 product image](https://www.stanhope-seta.co.uk/wp-content/uploads/94633-0_Viscometer_Bath_Oil-1-750x750.jpg)

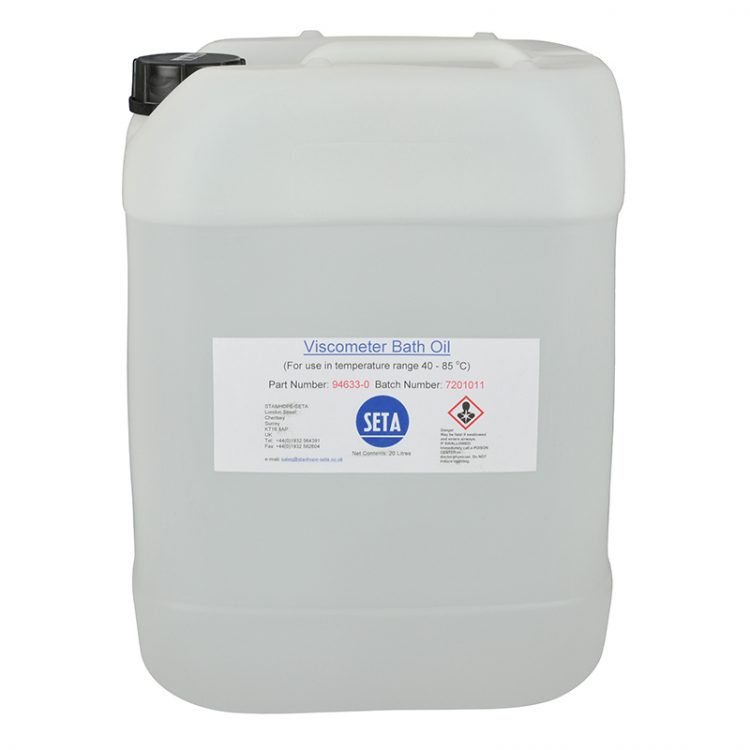

Viscometer Bath Oil 40 – 85 °C (20 litres) - 94633-0
