Product

Setafuge Hazard Reduction System - 90010-0

Methods
ASTM D91
ASTM D893
ASTM D1290
ASTM D1796
ASTM D2273
ASTM D2709
ASTM D2711
ASTM D4007
ISO 3734
ISO 9030

The use of a centrifuge in conjunction with volatile samples or samples with added solvents, at elevated temperatures, can result in the production of vapours which may be hazardous (flammable and/or toxic). In general the vapour pressure of hydrocarbons at 60 °C is approximately double that at 40 °C.

The Setafuge significantly reduces the hazards associated with vapours and gases released from samples at elevated temperatures.

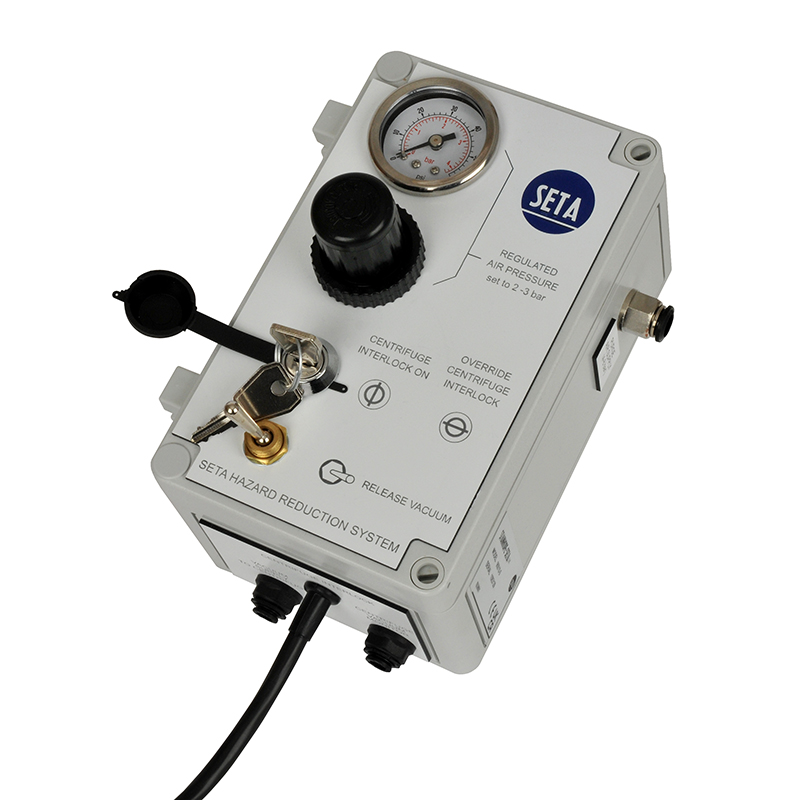

Setafuge Hazard Reduction System - 90010-0

Features

  • Vapour extraction and dilution
  • Reduced chamber pressure to prevent vapour seepage
  • Safety interlock

Information

Details

Vapours are extracted from near the top of the chamber, diluted with air, and discharged safely, via a tube, to a non-hazardous area. By maintaining the chamber at slightly below atmospheric pressure, escape of vapour into the laboratory environment is prevented.

A vacuum switch continuously monitors the vacuum inside the chamber and the unit interfaces with the centrifuge interlock to ensure that safe procedures are always followed. The Setafuge unit is quickly fitted to the centrifuge and connected to an external compressed air supply.

Note: Requires an external compressed air supply.

Details

ASTM D91 Standard test method for precipitation number of lubricating oils
ASTM D893 Standard test method for insolubles in Used Lubricating Oils
ASTM D1290 Standard test method for sediment in water-emulsion polishes by centrifuge
ASTM D1796 Standard Test Method for Water and Sediment in Fuel Oils by the Centrifuge Method (Laboratory Procedure)
ASTM D2273 Standard Test Method for Trace Sediment in Lubricating Oils
ASTM D2709 Water and Sediment in Middle Distillate Fuels by Centrifuge
ASTM D2711 Standard Test Method for Demulsibility Characteristics of Lubricating Oils
ASTM D4007 Water and Sediment in Crude Oil by the Centrifuge Method (Laboratory Procedure)
ISO 3734 Petroleum products - Determination of water and sediment in residual fuel oils - Centrifuge methods
ISO 9030 The Oil Test Centrifuge is a microprocessor controlled, programmable, heating centrifuge that meets the above standards

Details

Size (HxWxD)18 x 13 x 12 cm
Weight2 kg
Hazard ClassificationIEC/CENELEC Group IIA, IIB And IIC (USA Class 1, Group A-D)
CCCN CodeTariff 84219100

Methods

ASTM D91
ASTM D893
ASTM D1290
ASTM D1796
ASTM D2273
ASTM D2709
ASTM D2711
ASTM D4007
ISO 3734
ISO 9030
