Setaflash Series 3 Open Cup Flash Point Tester - 31000-0
Methods
ASTM D4206
IP 602
BS 3900-A11
CFR 49-173.120 Appendix H
CLP Regulations EC No 1272/2008
IATA Dangerous Goods Regs. Section 3.3.4
ISO 9038
UN Class 3 Test L2
The Setaflash Series 3 Open Cup Flash Point Tester is an easy to use instrument for flash/no flash, finite determinations or sustained combustion tests. Similar in design to the 30000-3, the instrument allows testing at any specific temperature within a range of ambient to 300 °C.
Learn more about flash point testing and which instrument you should be using >
Why flash point autosamplers do not comply with flash point test methods >

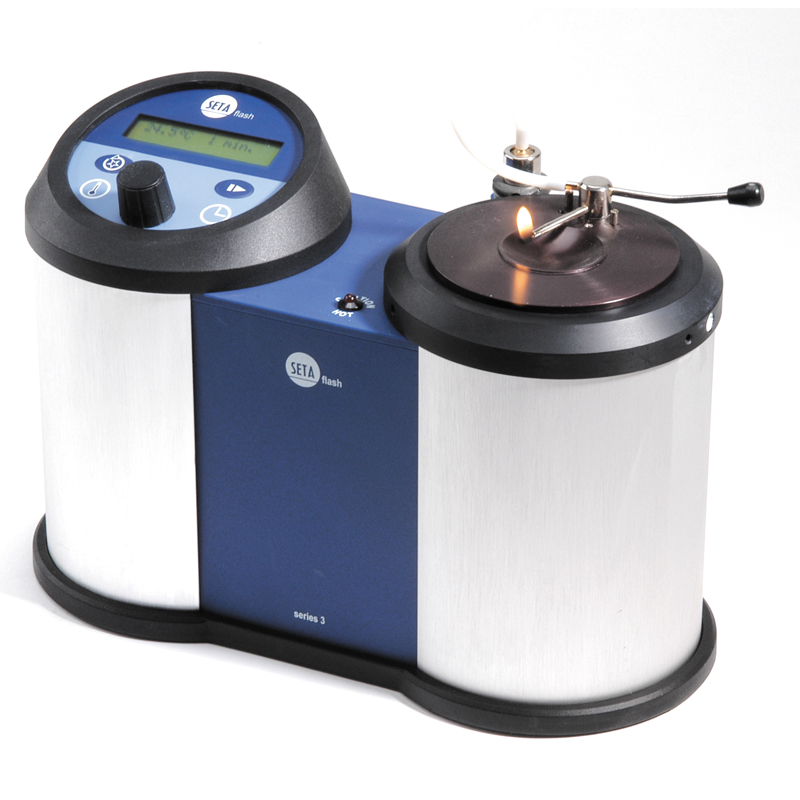

Setaflash Series 3 Open Cup Flash Point Tester - 31000-0
Features
- Ambient to 300 °C
- Flash point test in 1 minute
- Small sample size - 2 ml
- Audible and on-screen prompts
- Portable operation
- Simple calibration
Information
Details
A manually operated flame sweeping arm is fitted to the cup of the Series 3 flash point tester and gas is supplied from the integral tank via the control valve. The flash or sustained combustion characteristics of the sample are observed visually by passing the test flame over the sample.
Supplied with: 2 ml syringe, igniter, test flame height gauge, mains lead, and instruction manual.
Details
| BS 3900-A11 | Small scale test for combustibility |
|---|---|
| UN Class 3 Test L2 | Closed Cup Flash Point Testing |
| CFR 49-173.120 Appendix H | Ability of Liquid Paints to Sustain Combustion (Open Cup) |
| IATA Dangerous Goods Regs. Section 3.3.4 | Ability of Liquid Paints to Sustain Combustion (Open Cup) |
| ASTM D4206 | Sustained Burning of Liquid Mixtures by setaflash Tester (Open Cup) |
| ISO 9038 | Determination of sustained combustibility of liquids |
| IP 602 | Determination of sustained combustibility of liquids |
| CLP Regulations EC No 1272/2008 | European Regulation (EC) No 1272/2008 on classification, labelling and packaging of substances and mixtures |
Details
| Temperature range | Ambient to 300 °C |
|---|---|
| Sample Size | 2 ml |
| Test time | 1 minute for flash points up to 100 °C 2 minutes for flash points above 100 °C |
| Temperature measurement Default values | 0.5 °C resolution 0.5 °C accuracy |
| Cup Material | Blackened Aluminium |
| Voltage | 110/120 V or 220/240 V, 50/60 Hz (switchable) or 12 V using optional power supply |
| Size (HxWxD) | 26 x 28 x 26 cm |
| Weight | 5 kg |
| CCCN Code | Tariff 90268020 |
