Product

Seta Water Bath - 18200-6

Methods
ASTM D5
ASTM D217
ASTM D937
ASTM D1403
IP 50
IP 179
IP 310
IP 376
EN 1426

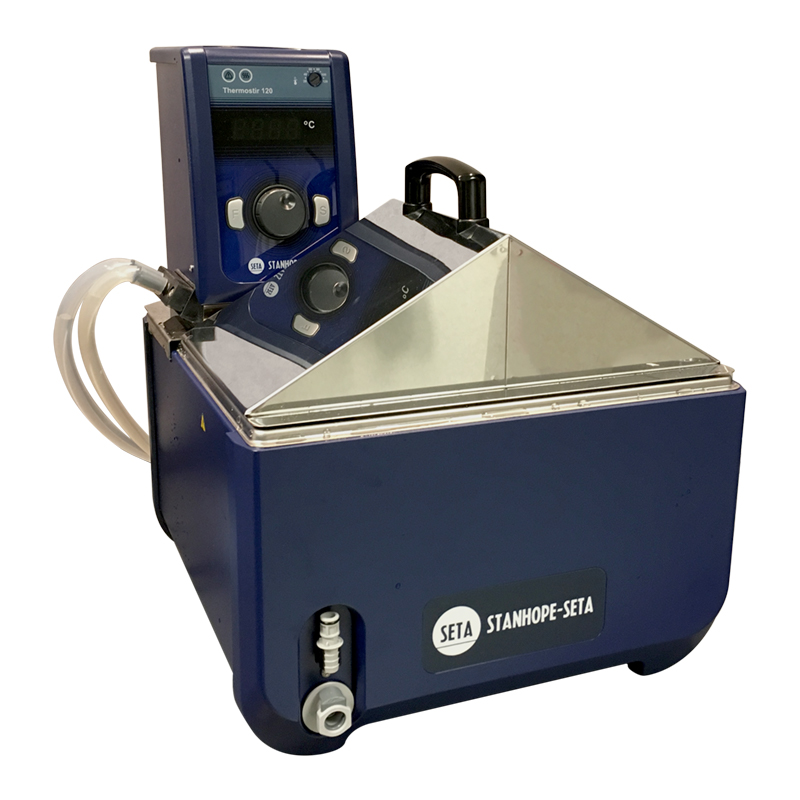

A small footprint water bath with digital control and a temperature range from ambient +5 °C to +120 °C.

Seta Water Bath - 18200-6

Features

  • Wide range of applications
  • 18 litre capacity
  • Compact footprint

Information

Details

The control unit/heater unit incorporates a stirrer, and overtemperature and low-level cutouts. Control at near ambient temperatures is obtained by using either the Cooling Unit with Coil (18203-0) or the Cooling Coil (18204-0) shown in Accessories.

The bath is manufactured from stainless steel and is equipped with a stainless steel pent roof lid.

Supplied with:
Perforated draining shelf to support sample containers
Mains lead
Instruction manual

Details

ASTM D5 Standard Test Method for Penetration of Bituminous Materials
ASTM D217 Cone Penetration of Petrolatum
IP 50 Determination of cone penetration of lubricating grease
IP 179 Determination of cone penetration of petroleum
IP 310 Determination of cone penetration of grease - One-quarter and one-half scale cone method
IP 376 Determination of needle penetration of petroleum wax
ASTM D1403 Standard test methods for cone penetration of lubricating grease using one-quarter and one-half scale cone equipment
ASTM D937 Standard test method for cone penetration of petrolatum
EN 1426 Methods of tests for petroleum and its products. Bitumen and bituminous binders. Determination of needle penetration

Details

Temperature RangeAmbient +5 °C to 100 °C (0 °C to 100 °C with cooling)
Temperature Stability±0.1 °C
Capacity18 litres
Voltage110/120 V, 50/60 Hz 220/240 V, 50/60 Hz
Power1500 W (120 Vac) 1400 W (230 Vac)
Tank Size (HxWxD)215 x 360 x 332 mm
Thermostir Size (HxWxD)333 x 141 x 172 mm
Weight10 kg (tank empty)
CCCN CodeTariff 84198998
