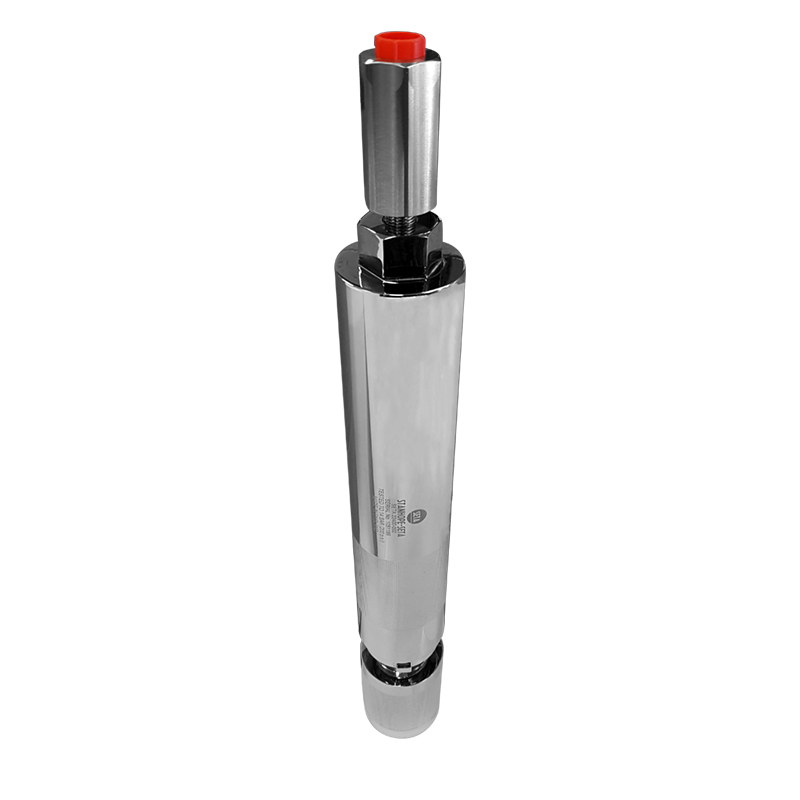

Seta Reid Pressure Cylinder Assembly – up to 180 kPa (26 psi) - 22400-0
Methods
ASTM D323
ASTM D4953 Procedure A
IP 69
BS ISO 3007 & BS 2000-69
Made from chromium-plated brass with knurled grips for safe handling and a bayonet coupling for quick leak-free connection. The volume ratio between chambers is held to close limits.
Seta Reid Pressure Cylinder Assembly – up to 180 kPa (26 psi) - 22400-0
Features
- Determines Reid vapour pressure of non-viscous petroleum products and volatile crude oil
- Accurate chamber volume ratio
- Quick leak-free bayonet connection between chambers
- Chromium-plated brass construction
- Pressures up to 180 kPa (26 psi)
- ASTM D323 & IP Procedures A & D
- Hydrostatically pressure tested to 690 kPa (100 psi)
Information
Details
| ASTM D323 | Standard test method for vapor pressure of petroleum products (Reid Method) |
|---|---|
| ASTM D4953 Procedure A | Standard Test Method for Vapor Pressure of Gasoline and Gasoline-Oxygenate Blends (Dry Method) |
| IP 69 | Petroleum products - Determination of vapour pressure - Reid method |
| BS ISO 3007 & BS 2000-69 | Vapour Pressure of Petroleum Products (Reid Method) |
Details
| CCCN Code | Tariff 90268080 |
|---|
Methods
ASTM D323
ASTM D4953 Procedure A
IP 69
BS ISO 3007 & BS 2000-69
Industries
Spares and accessories for Seta Reid Pressure Cylinder Assembly – up to 180 kPa (26 psi) - 22400-0
