Product

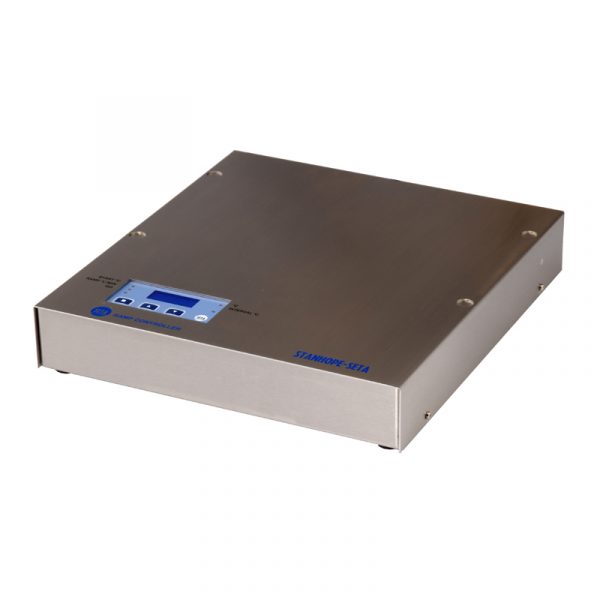

Setaramp Automated Temperature Controller - 13663-0
Methods
ASTM D93
BS EN ISO 2719 & BS 2000-34
The controller is a plug-in, automated temperature control unit which is powered from the host flash point tester to override the testers' own controller.
It accurately controls the specified rate of temperature rise in the sample cup and provides an audible prompt at specified temperature intervals for the flash point to be checked.
The unit fits underneath and derives power from the host apparatus and the power controller on the host instrument is disabled by its connection.
For use with;
Seta Pensky-Martens Closed Cup Flash Point Tester (13661-4)
Seta Semi-Automatic Cleveland Open Cup Flash Point Tester (13811-3)
Setaramp Automated Temperature Controller - 13663-0
Features
- Automated temperature control unit
- Programmable start temperature, ramp rate, and test interval
- Audible prompt
- Compatible with 13811-3 and 13661-3 Seta Pensky-Martens and Cleveland testers.
Information
Details
The start temperature, rise rate (°C / min) and test temperature interval (°C) are entered by the operator via a keypad. A digital display shows the parameters set, and the temperature of the sample.
The existing thermometer in the host's sample cup is replaced by a Probe Assembly (13664-0) for Pensky and Probe Assembly (13815-0) for Cleveland testers, which includes a digital temperature display.
Notes;
A probe assembly is required for operation.
Ramp temperature may be difficult to control during Cleveland tests when testing liquids with a viscosity greater than 800 cSt at 25 °C
Details
| BS EN ISO 2719 & BS 2000-34 | Methods of test for petroleum and its products. Flash point by Pensky-Martens closed tester |
|---|---|
| ASTM D93 | Standard test methods for flash-point by Pensky-Martens closed cup tester |
Details
| Ramp Rate | Variable, user definable ( within the time and temperature limits of the flash point tester), automatically controlled |
|---|---|
| Voltage | 110/120 V, 50/60 Hz 220/240 V, 50/60 Hz |
| Size (HxWxD) | 6 x 34 x 32 cm |
| Weight | 3 kg |
| CCCN Code | Tariff 90269000 |
Methods
ASTM D93
BS EN ISO 2719 & BS 2000-34
Spares and accessories for Setaramp Automated Temperature Controller - 13663-0
