Product

Vapour Pressure Gauge 0 to 700 kPa - 22550-0

Methods
ASTM D323 Procedures A & C & D
ASTM D1267
IP 69 Procedures A & C & D
IP 410
BS EN ISO 4256 & BS 2000-410
BS ISO 3007 & BS 2000-69

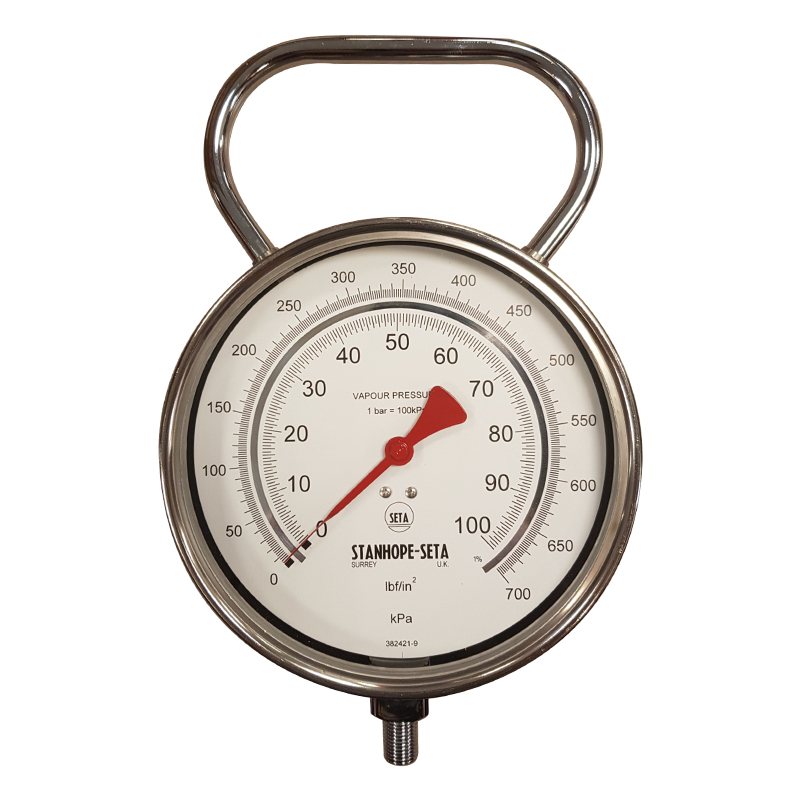

Bourdon-Tube type pressure gauge with 150 mm diameter mirror band dials to eliminate paralax errors while reading. The graduations are marked in kPa and psi (lbf/in2).

The gauge has a bottom entry 1/4 inch BSP fitting and a heavy duty stainless steel case with a large carrying handle suitable for lifting a complete pressure vessel assembly from a bath.

The gauge conforms to EN837 S2 (up to 2500 kPa), Accuracy Class 1 ±1% fsd.

Vapour Pressure Gauge 0 to 700 kPa - 22550-0

Features

  • Pressure range 0 to 700 kPa (0 to 100 psi)
  • Accuracy ±1% fsd
  • 150 mm dial
  • Mirror scale in kPa and psi
  • 1/4 inch BSP fitting
  • Sturdy handle

Information

Details

ASTM D1267 Standard test method for gauge vapour pressure of liquefied petroleum (LP) gases (LP - gas method)
IP 410 Liquefied petroleum gases - Determination of gauge vapour pressure - LPG method (ISO 4256:1996)
BS ISO 3007 & BS 2000-69 Vapour Pressure of Petroleum Products (Reid Method)
BS EN ISO 4256 & BS 2000-410 Determination of gauge vapour pressure. LPG method
ASTM D323 Procedures A & C & D Standard test method for vapor pressure of petroleum products (Reid Method)
IP 69 Procedures A & C & D Petroleum products - Determination of vapour pressure - Reid method

Details

CCCN CodeTariff 90262080

Methods

ASTM D323 Procedures A & C & D
ASTM D1267
IP 69 Procedures A & C & D
IP 410
BS EN ISO 4256 & BS 2000-410
BS ISO 3007 & BS 2000-69
