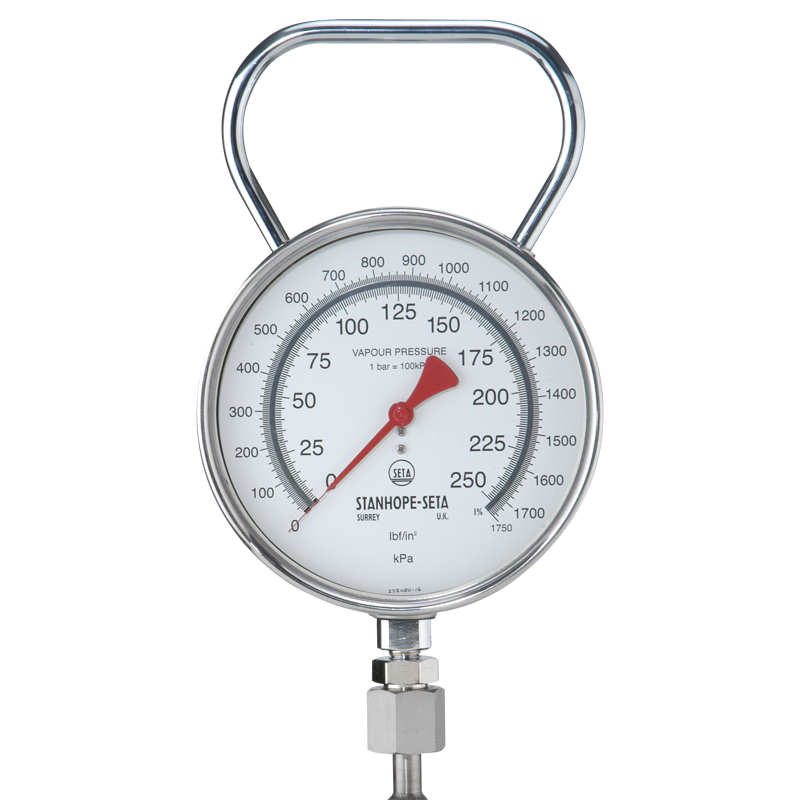

Vapour Pressure Gauge 0 to 1750 kPa - 22560-0
Methods
ASTM D1267
Bourdon-Tube type pressure gauge with 150 mm diameter mirror band dials to eliminate paralax errors while reading. The graduations are marked in kPa and psi (lbf/in2).
The gauge has a bottom entry 1/4 inch BSP fitting and a heavy duty stainless steel case with a large carrying handle suitable for lifting a complete pressure vessel assembly from a bath.
The gauge conforms to EN837 S2 (up to 2500 kPa), Accuracy Class 1 ±1% fsd.
Vapour Pressure Gauge 0 to 1750 kPa - 22560-0
Features
- Pressure range 0 to 1750 kPa (0 to 250 psi)
- Accuracy ±1% fsd
- 150 mm dial
- Mirror scale in kPa and psi
- 1/4 inch BSP fitting
- Sturdy handle
Information
Details
| ASTM D1267 | Standard test method for gauge vapour pressure of liquefied petroleum (LP) gases (LP - gas method) |
|---|
Details
| CCCN Code | Tariff 90262080 |
|---|
Methods
ASTM D1267
