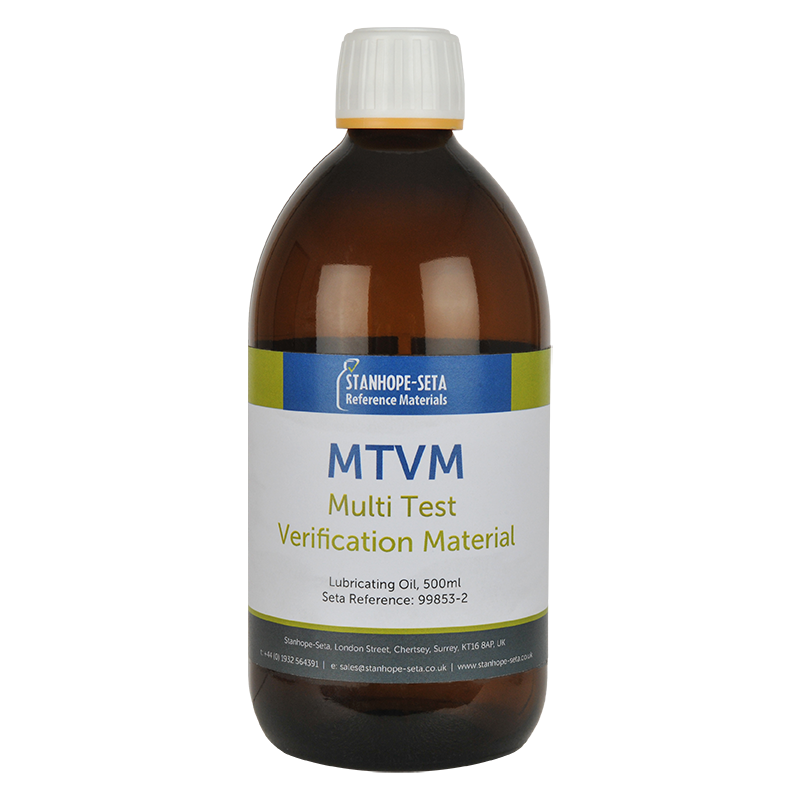

Product

MTVM – Lubricating Oil 500 ml - 99853-2

Methods
ASTM D93
ASTM D97-IP15
ASTM D445
ASTM D664
ASTM D2270
ASTM D4052
ASTM D5185
IP 34
IP 71
IP 226
IP 365
ISO 2719
ISO 2909
ISO 3016
ISO 3104

Produced in general accordance with the principles of ISO 17034 and ISO Guide 35, the Multi Test Verification Material (MTVM) Lubricating Oil provides certified values for multiple test methods and has been characterised using a network of competent laboratories to provide international traceability. It is a highly cost effective solution to help meet verification requirements for audited laboratories and those which comply with ISO 17025.

Multi Test Verification Materials (MTVMs) allow routine monitoring of instrument performance and are also particularly helpful in training personnel on new equipment and test methods. The purchase of MTVMs is recommended with new instrumentation to assist with installation and commissioning.

Incorrect determination of a result can have far reaching financial and safety implications. The growing use of automated instrumentation increases the possibility that incorrect results may go undetected and in addition the early indication of bias is a useful warning to minimise production ‘giveaway’.

Seta MTVMs are unique because, unlike most other certified reference material that are only suitable for validating a specific parameter/value, Seta MTVMs enable a user to validate different tests and instrumentation using the same sample material.

Certification: the Multi Test Verification Material (MTVM) Lubricating Oil is supplied with a certificate of measurement which gives the certified value for each test method covered by the material.

Suitable for use with a number of Seta instruments including the KV6 Viscometer Bath (84200-3) and the SetaCool-4 (94155-0).

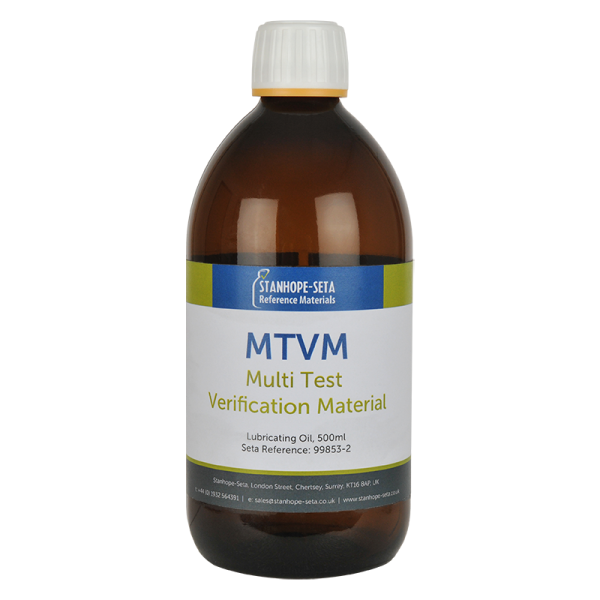

MTVM – Lubricating Oil 500 ml - 99853-2

Features

  • Cost effective solution to verification requirements
  • Cross-check instrument performance
  • Assistance for operator training
  • Supports full compliance to ASTM, IP, CEN and ISO test methods
  • Supplied with full documentation including SDS
  • Tamper evident security packaging
  • 2 year shelf life from manufacture

Information

Details

ISO 3104 Kinematic Viscosity of Transparent and Opaque Liquids and the Calculation of Dynamic Viscosity
ISO 2909 Calculating Viscosity Index from Kinematic Viscosity at 40 and 100°C
ISO 2719 Flash Point by Pensky-Martens Closed Tester
ASTM D97-IP15 Standard Test Method for Pour Point of Petroleum Products
ISO 3016 Pour Point of Petroleum Oils
ASTM D93 Standard test methods for flash-point by Pensky-Martens closed cup tester
IP 34 Determination of flash point - Pensky - Martens closed cup method (ISO 2719:2002)
IP 71 Determination of kinematic viscosity
ASTM D4052 Method for Density, Relative Density, and API Gravity of Liquids by Digital Density Meter
IP 365 Density and Relative Density of Liquids by Digital Density Meter
ASTM D445 Method for Kinematic Viscosity of Transparent and Opaque Liquids
ASTM D2270 Standard Practice for Calculating Viscosity Index From Kinematic Viscosity at 40 and 100°C
ASTM D5185 Method for Multi-element Determination of Used and Unused Lubricating Oils and Base Oils
ASTM D664 Method for Acid Number of Petroleum Products by Potentiometric Titration
IP 226 Petroleum products - Calculation of viscosity index from kinematic viscosity.

Details

Kin Vis 40 °C53 to 165 mm2/s Amount/test: 30 mL
Kin Vis 100 °C9 to 22 mm2/s Amount/test: 30 mL
Viscosity Index159 to 180 °C Amount/test: 60 mL
Pour Point-49.1 to -33 °C Amount/test: 50 mL
Flash Point196 to 225 °C Amount/test: 80 mL
Density0.85 to 0.88 g/mL Amount/test: 2 mL
Total Acid Number1 to 5 KOH/g Amount/test: 5 mL
Zinc800 to 1275 mg/kg Amount/test: 5 mL
Phosphorous800 to 1600 mg/kg Amount/test: 5 mL
Calcium3000 to 5000 mg/kg Amount/test: 5 mL
CCCN CodeTariff 38229000
