Product

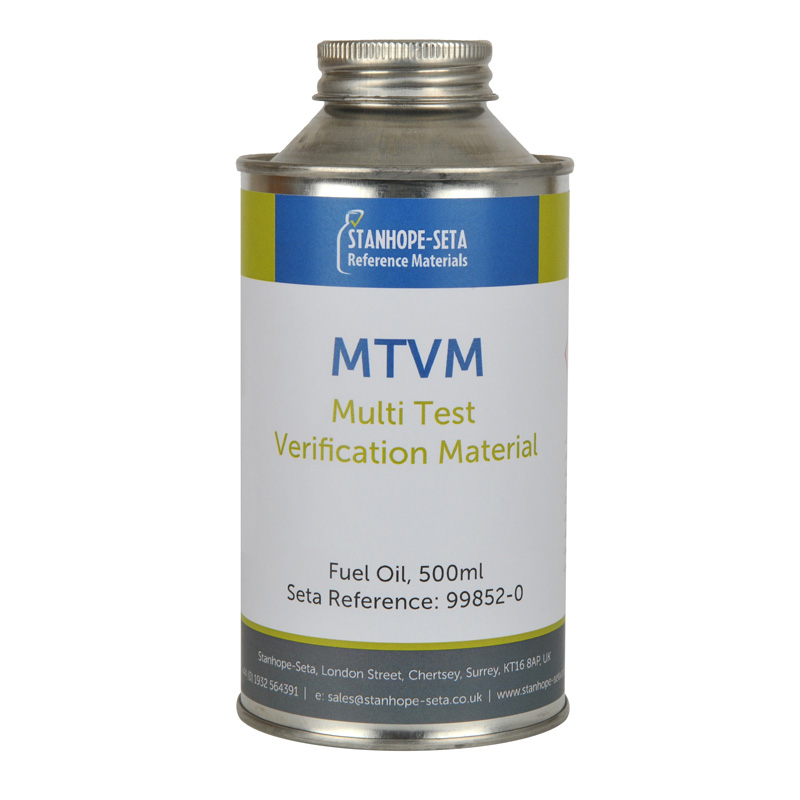

MTVM – Fuel Oil 500 ml - 99852-0

Methods
ASTM D93 (b)
ASTM D97-IP15
ASTM D445-IP 71
ASTM D4052
ASTM D4530
IP 34 (b)
IP 365
IP 398
EN ISO 2719
ISO 3016
ISO 3104
ISO 10370
ISO 12185

Produced in general accordance with the principles of ISO 17034 and ISO Guide 35, the Multi Test Verification Material (MTVM) Fuel Oil provides certified values for multiple test methods and has been characterised using a network of competent laboratories to provide international traceability. It is a highly cost effective solution to help meet verification requirements for audited laboratories and those which comply with ISO 17025.

Multi Test Verification Materials (MTVMs) allow routine monitoring of instrument performance and are also particularly helpful in training personnel on new equipment and test methods. The purchase of MTVMs is recommended with new instrumentation to assist with installation and commissioning.

Incorrect determination of a result can have far reaching financial and safety implications. The growing use of automated instrumentation increases the possibility that incorrect results may go undetected and in addition the early indication of bias is a useful warning to minimise production ‘giveaway’.

Seta MTVMs are unique because, unlike most other certified reference material that are only suitable for validating a specific parameter/value, Seta MTVMs enable a user to validate different tests and instrumentation using the same sample material.

Certification: the Multi Test Verification Material (MTVM) Fuel is supplied with a certificate of measurement which gives the certified value for each test method covered by the material.

Suitable for use with a number of Seta instruments including the Micro Carbon Residue Tester (97400-3) and the PM-93 Pensky-Martens Flash Point Tester (35000-0).

MTVM – Fuel Oil 500 ml - 99852-0

Features

  • Cost effective solution to verification requirements
  • Cross-check instrument performance
  • Assistance for operator training
  • Supports full compliance to ASTM, IP, CEN and ISO test methods
  • Supplied with full documentation including SDS
  • Tamper evident security packaging
  • 2 year shelf life from manufacture

Information

Details

ASTM D445-IP 71 Standard test method for kinematic viscosity of transparent and opaque liquids (the calculation of dynamic viscosity)
ISO 3104 Kinematic Viscosity of Transparent and Opaque Liquids and the Calculation of Dynamic Viscosity
ASTM D97-IP15 Standard Test Method for Pour Point of Petroleum Products
ISO 3016 Pour Point of Petroleum Oils
ASTM D4530 Standard test method for determination of carbon residue (micro method)
ISO 10370 Carbon Residue of Petroleum Products
EN ISO 2719 Determination of flash point. Pensky-Martens closed cup method
ASTM D93 (b) Standard test methods for flash-point by Pensky-Martens closed cup tester
IP 34 (b) Determination of flash point - Pensky - Martens closed cup method (ISO 2719:2002)
IP 398 Determination of carbon residue - micro method
ASTM D4052 Method for Density, Relative Density, and API Gravity of Liquids by Digital Density Meter
IP 365 Density and Relative Density of Liquids by Digital Density Meter
ISO 12185 Crude petroleum and petroleum products -- Determination of density -- Oscillating U-tube method

Details

Density at 15 °CRange: 0.94 to 0.994 kg/L Amount/test: 2 mL
Pour PointRange: -14 to 17 °C Amount/test: up to 45 mL
Kin Vis 50 °CRange: 150 to 1800 mm2/s Amount/test: up to 40 mL
Kin Vis 100 °CRange: 20 to 95 mm2/s Amount/test: up to 40 mL
Micro CarbonRange: 0.10 to 30.0 %(m/m) Amount/test: 2 mL
Flash PointRange: 92.3 to 121.6 °C Amount/test: 75 mL
CCCN CodeTariff 38229000

Methods

ASTM D93 (b)
ASTM D97-IP15
ASTM D445-IP 71
ASTM D4052
ASTM D4530
IP 34 (b)
IP 365
IP 398
EN ISO 2719
ISO 3016
ISO 3104
ISO 10370
ISO 12185
