Product
Mini Low Temperature Bath Circulator - 99300-5
Methods
ASTM D86
ASTM D445
ASTM D892
ASTM D3828
ASTM D7236
ASTM D8174
IP 71
IP 123
IP 146
BS EN ISO 3405 & BS 2000-123
DIN 51 366
ISO 3679

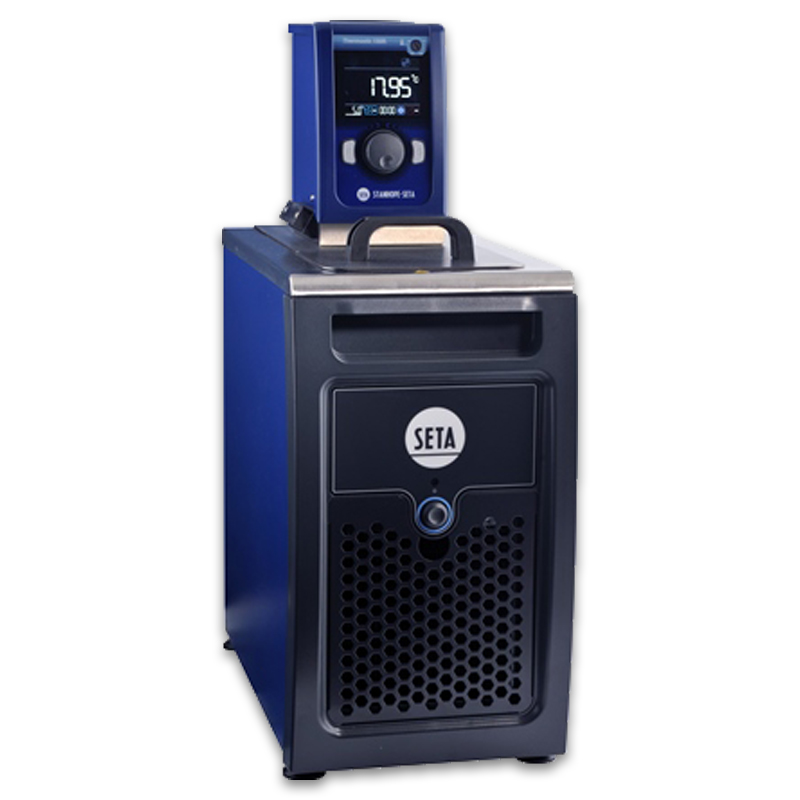

A small low temperature, automated bath / circulator suitable for providing a flow of chilled water for cooling applications, or for direct immersion of samples.
Comprises a 5 litre refrigerated stainless steel bath with thermostatic control, and a digitally controlled thermostir / pump unit. The unit provides accurate temperature control in the range -25 to +150 °C. Safety features include an over-temperature cut-out and a low temperature alarm.
Supplied with; mains lead and instruction manual.
Note: Supplied excluding fittings.
Mini Low Temperature Bath Circulator - 99300-5
Features
- Stability ±0.02 °C at -10 °C
- Digital control
- Removable top plate
- low liquid level cut-out
- R290 refrigerant for GWP compliance
Information
Details
| ISO 3679 | Determination of flash point. Rapid equilibrium closed cup method |
|---|---|
| DIN 51 366 | Testing of mineral oil hydrocarbons; measurement of kinematic viscosity by means of the Cannon-Fenske viscometer, for opaque liquids |
| ASTM D86 | Standard test method for distillation of petroleum products at atmospheric pressure |
| IP 123 | Petroleum products - Determination of distillation characteristics at atmospheric pressure (ISO 3405:2000) |
| BS EN ISO 3405 & BS 2000-123 | Determination of distillation characteristics at atmospheric pressure |
| ASTM D3828 | Standard Test Methods for Flash Point by Small Scale Closed Tester |
| ASTM D7236 | Flash Point by Small Scale Closed Cup Ramp Method |
| IP 71 | Determination of kinematic viscosity |
| ASTM D445 | Method for Kinematic Viscosity of Transparent and Opaque Liquids |
| IP 146 | Determination of foaming characteristics of lubricating oils |
| ASTM D892 | Test method for foaming characteristics of lubricating oils |
| ASTM D8174 | Standard Test Method for Finite Flash Point Determination of Liquid Wastes by Small-Scale Closed Cup Tester |
Details
| Temperature Range | -25 to 150 °C |
|---|---|
| Temperature Stability | ±0.02 °C at - 10 °C |
| Bath Capacity | 5.5 litres |
| Flow Rate | 14-22 litres/min (adjustable) |
| Pressure | 530 mbar (maximum) |
| Voltage | 110/120 V, 50/60 Hz 220/240 V, 50/60 Hz |
| Power | 1.9 kW (maximum heat) |
| Size (HxWxD) | 63 x 24 x 43 cm |
| Weight | 24 kg |
| CCCN Code | Tariff 90269000 |
