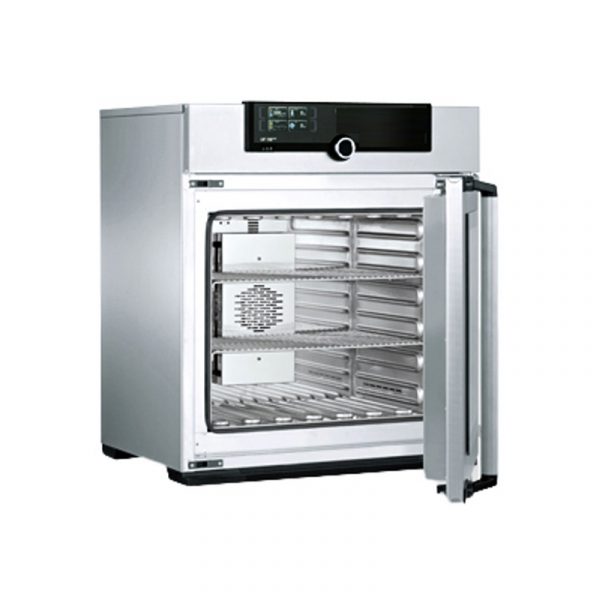

Laboratory Drying Oven - 99200-3

A digitally controlled oven suitable for heat storage, heat treatment and drying processes at temperatures up to 300 °C for timed periods up to 999 hours.

The laboratory oven comprises a control panel with an integral high definition TFT-colour display, a 53 litre capacity, heated working chamber, a Pt100 temperature sensor, an ethernet interface, and an over-temperature protection system.

Laboratory Drying Oven - 99200-3

Features

  • Temp range ambient +5 to 300 °C
  • 1 minute to 99 days timer
  • Natural convection
  • Chamber ventilation slide adjustment
  • Calibrated

Information

Details

The oven utilises a natural convection (circulation) system. The supply air is preheated in a chamber, and passes through the ventilation slits on the side panel of the working chamber and enters the chamber interior. The volume of the exhaust air exiting the oven is controlled by the air flap at the rear panel of the oven, thereby controlling the flow of incoming air.

The internal working space is manufactured from corrosion resisting steel and has a moveable perforated stainless steel shelf.

Supplied with: a shelf and instruction manual.

Certification: Supplied with Works Calibration Certificate.

Details

Temperature rangeAmbient +5 °C to 300 °C
Internal Capacity53 litres
Power1.4 kW
Voltage230 V, 50/60 Hz
Size (HxWxD)40 x 40 x 33 cm (Internal) 78 x 58.5 x 51 cm (External)
Weight57 kg
CCCN CodeTariff 84178070
