In-line Conductivity Sensor ATEX - 99500-0

Methods
ASTM D2624
IP 274

The In-line Conductivity Sensor is an inline system that provides real time measurement of conductivity in pipelines using high accuracy AC measurement technology.

The system can be connected to a refinery/terminal management system to provide an automatic and continuous record of product conductivity levels, eliminating the requirement for manual sampling and record keeping. When installed with an automatic dosing system the in-line sensor allows automated additive dosing to maintain the conductivity within specified limits.

Learn more about in-line conductivity measurement

Read how Stanhope-Seta's conductivity sensors saved a refinery $100k per annum

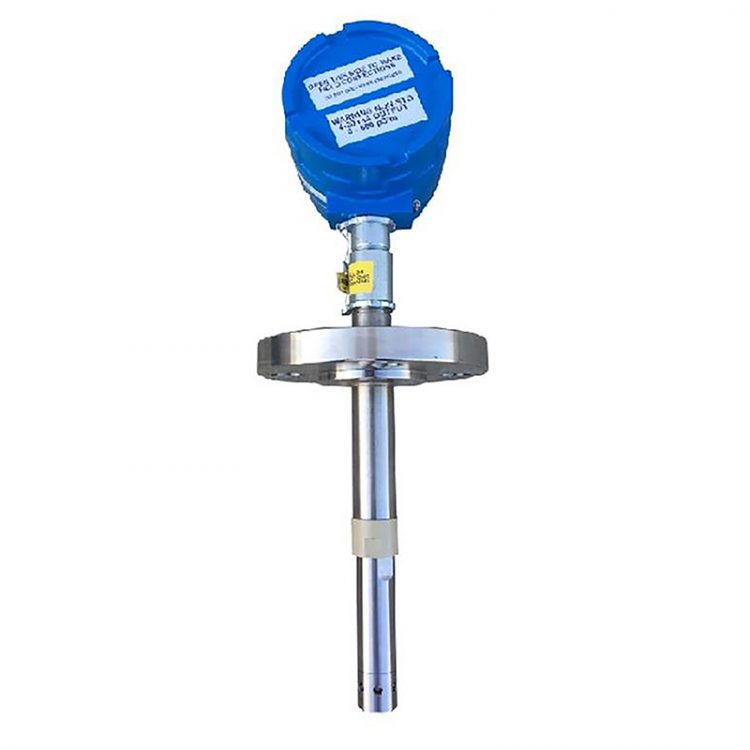

In-line Conductivity Sensor ATEX - 99500-0

Features

  • In-line conductivity and temperature measurement conforming to ASTM D2624
  • Conductivity range 0 to 2000 pS/m
  • Accuracy +/-2% of reading
  • Temperature range -40° to 85 °C +/-0.5°C
  • Standard 16 bar max line pressure (high pressure model available)
  • 4-20 mA output
  • Stainless Steel construction
  • ATEX, FM, IEC Certified (note - model dependent)

Information

Details

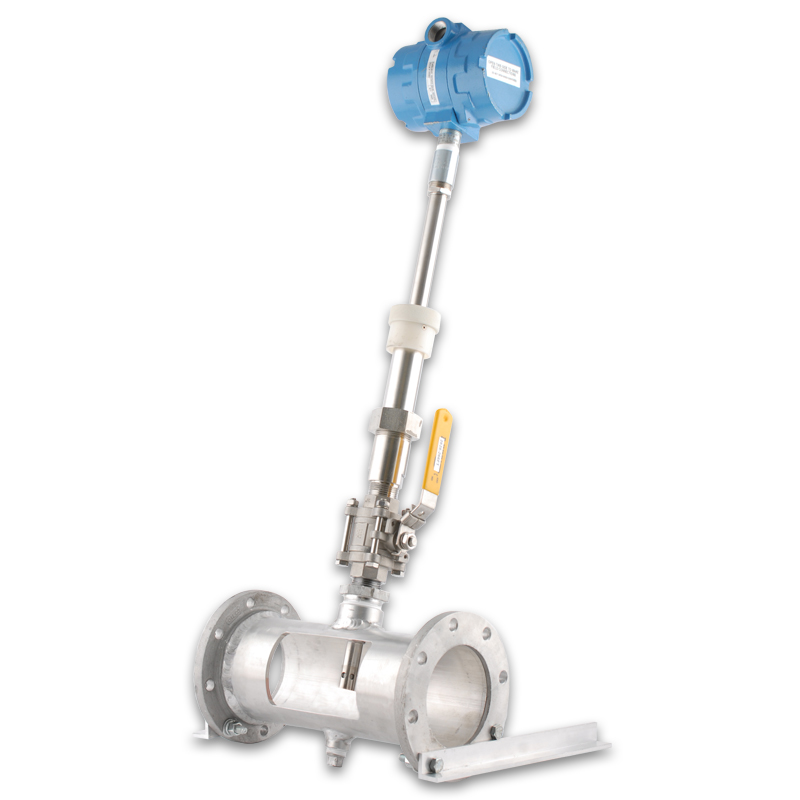

The conductivity sensor comprises two stainless steel coaxial electrode sensors and is suitable for long-term immersion in fuels. For maintenance the sensor is easily retracted from the fuel line through a full-port ball valve. The retractable fitting allows an adjustable insertion depth to optimize positioning of the sensor in the line and fitment to pipes of varying diameters.

A typical mounting is via a 1” NPT pipeline nipple, and through a 1” Full port Ball Valve. The sensor connects directly to the Ball Valve using an adaptor. We recommend a suitable ball valve is sourced locally to suit pipe fittings. ANSI and DIN type Flange mounts are also available. Please select adaptor type from Accessories when ordering.
NOTE: Installation documents and schematics are available on request.

Details

ASTM D2624 Measurement of Electrical Conductivity of Distillate Fuels
IP 274 Measurement of Electrical Conductivity of Distillate Fuels

Details

Range0 to 2000 pS/m
Accuracy+/-2 pS/m (+/-2% of reading)
Pressure16 bar max pressure
Temperature Range-40° to 85 °C, Accuracy +/-0.5 °C
Resolution0.1 pS/m
Sensor Type316 SS Coaxial Electrode
CalibrationInternal Source Zero and Scale
CertificationEx II 2 G Ex db ia IIB+H2 T4 Gb
IP RatingIP66
CCCN CodeTariff 90318080
