Product
Dual Water Washout Tester - 19650-0
Methods
ASTM D1264
IP 215
DIN 51 807
ISO 11009

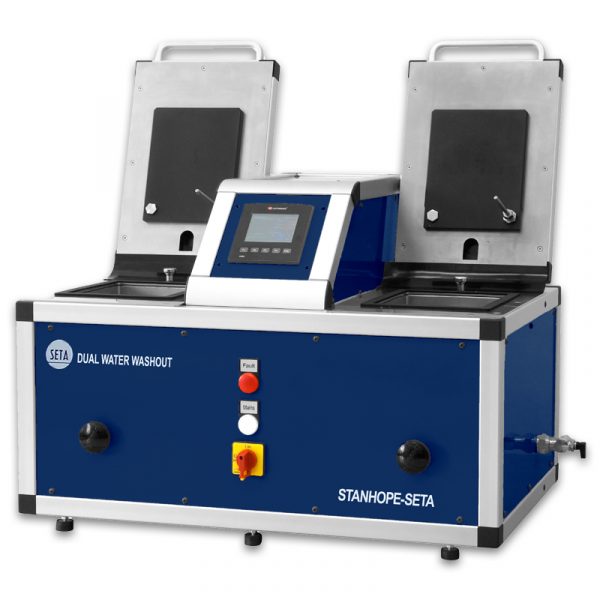

The Seta Dual Water Washout Tester estimates the resistance of lubricating greases to water washout from ball bearings according to ASTM D1264, DIN 51807-2 and ISO 11009. The methods evaluate the resistance of a lubricating grease to washout by water from a bearing, when tested at 38 and 79°C (100 and 175 °F), under the prescribed laboratory conditions.
Dual Water Washout Tester - 19650-0
Features
- Twin bearing and housings for duplicate or independent testing
- Two separate water tanks and jets
- All parameters are independently adjustable
- Magnetic bearing drive for easy disassembly and removal
- PLC for an automatic test procedure and display of test parameters
- Spacious and easy to clean water tank
- All water wet parts are resilient to salt water
Information
Details
The Seta Water Washout Tester has two bearing housings and two separate water tanks, all test parameters are independently adjustable.
Supplied with: two test bearings for laboratory commissioning and instruction manual
Details
| ASTM D1264 | Standard test method for determining the water washout characteristics of lubricating greases |
|---|---|
| IP 215 | Determination of water washout characteristics of lubricating grease |
| ISO 11009 | Water Washout Characteristics |
| DIN 51 807 | Water Washout Characteristics |
Details
| Rotation Speed | 600 ±30 rpm |
|---|---|
| Temperature Range | Up to 80°C Preset ranges of 38°C and 79°C |
| Voltage | 220/240 V, 50 Hz |
| Weight | 55 kg |
| Size (HxWxD) | 520 x 730 x 500 mm |
| CCCN Code | Tariff 90318080 |
Methods
ASTM D1264
IP 215
DIN 51 807
ISO 11009
Spares and accessories for Dual Water Washout Tester - 19650-0
Test Bearing Support Ring - 19650-010
View accessoryCover Disc Shaft - 19650-009
View accessoryCover Plate Test Bearing - 19650-008
View accessorySeal Ring (Pack of 4) - 19650-007
View accessoryCover Disc Screw Set (Pack of 5) - 19650-006
View accessoryTest Bearing Screw - 19650-005
View accessoryThrust Bearing - 19650-004
View accessorySieve Bracket - 19650-002
View accessoryFlat Gasket for Tank - 19650-001
