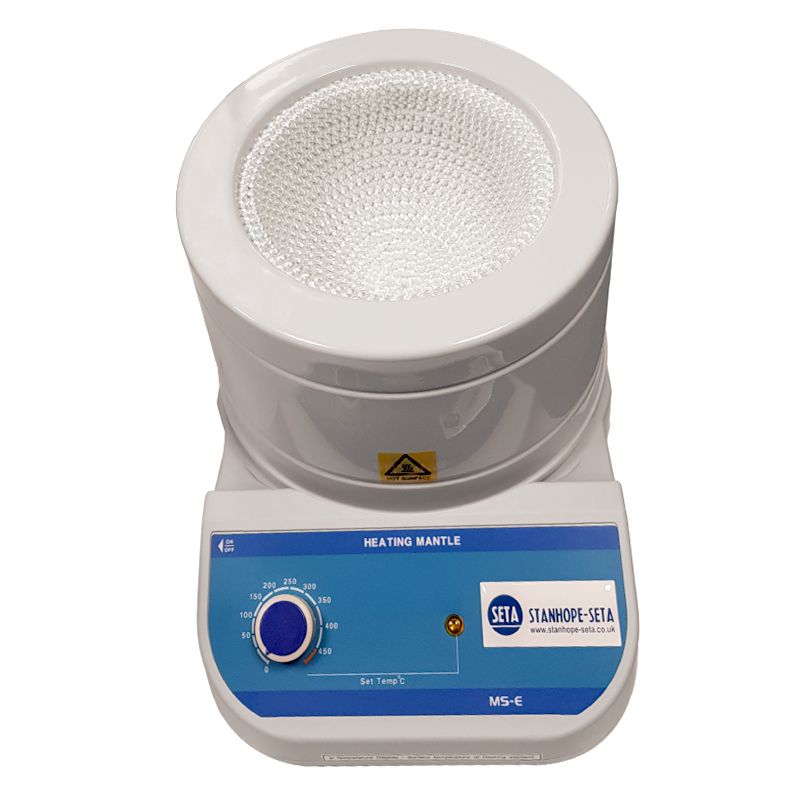

Distillation 1000 ml Flask Heater - 24415-3
The Seta Distillation Flask Heater is a regulated heating mantel which has the capacity to accommodate a 1000 ml flask. It is a general purpose heating mantel designed for laboratory procedures that require precise temperature control.
The heating element is made of glass fibre which minimises damage to the flask in case of a slight impact between flask and heater. Heating efficiency is promoted greatly with good contact between the heating element and the glass vessel.
Temperature is adjusted by a temperature control dial. A heater power indicator will illuminate when power is applied to the heater element. Once a stable temperature is achieved, the indicator will flash as it applies bursts of power to maintain the temperature.
Note; clamp, bosshead and glassware available separately
Distillation 1000 ml Flask Heater - 24415-3
Features
- Temperature range up to 450 °C
- Accepts 1000 ml flasks
- 350 W Mantle type heater
- Integral energy regulator
- Complete with support rod
Information
Details
Supplied with: Support rod, mains lead and user manual.
Details
ASTM D95 | Standard test method for water in petroleum products and bituminous materials by distillation |
---|---|
ASTM E123 | Standard Specification for Apparatus for Determination of Water by Distillation |

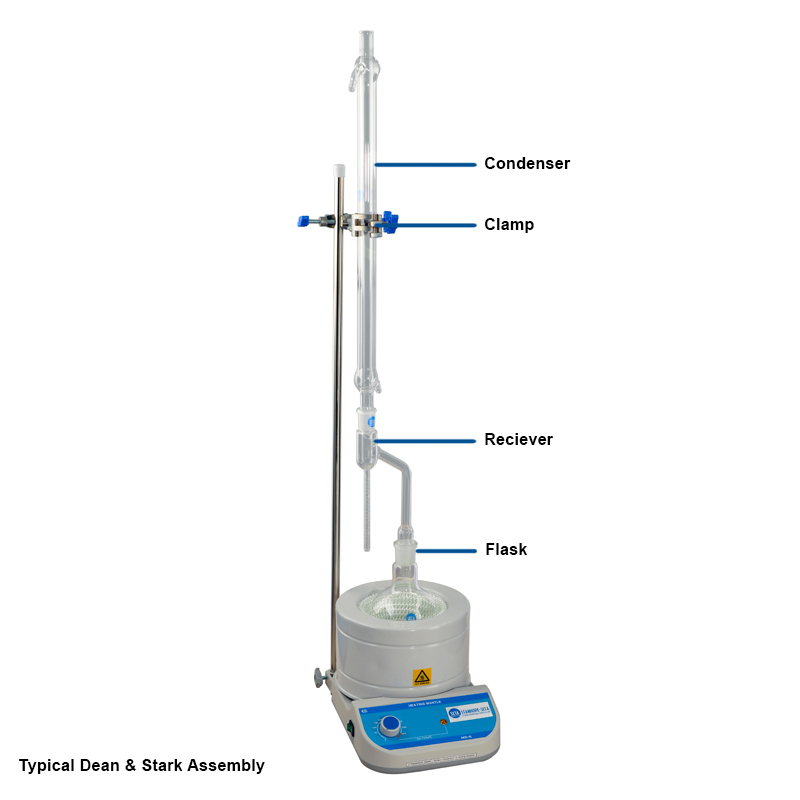

IP 291 | Water Content of Bitumen Emulsions (Dean and Stark Apparatus) |
BS 756 | Specification for Dean and Stark apparatus |
ASTM D4006 | Standard test method for water in crude oil by distillation |
IP 358 | Crude petroleum - Determination of water - Distillation method (ISO 9029:1990) |
ASTM D244 | Determination of Saybolt, Engler or Redwood viscosities |
BS EN ISO 9029 & BS 2000-358 & ISO 9029 | Crude petroleum. Determination of water. Distillation method |
BS 2000-74 & ISO 3733 | Methods of test for petroleum and its products. Petroleum products and bituminous materials. Determination of water. Distillation method |
IP 74 | Standard test method for water in petroleum products and bituminous materials by distillation |
Details
Voltage | 110 or 230 V, 50/60 Hz |
---|---|
Power | 350 W |
Size (HxWxD) | 172 x 214 x 298 mm |
Weight | 3.5 kg |
CCCN Code | Tariff 84195080 |
Methods
Industries
Spares and accessories for Distillation 1000 ml Flask Heater - 24415-3
Glass Flask 1000 ml B24 Cone - 24402-0
View accessoryReceiver 25.0 ml (for IP 291 only) - 24510-0
View accessoryReceiver 12.5 ml - 24490-0
View accessoryReceiver 10.0 ml with stopcock - 24480-0
View accessoryReceiver 7.5 ml - 24470-0
View accessoryReceiver 5.0 ml - 24465-0
View accessoryReceiver 3.0 ml - 24460-0
View accessoryReceiver 2.0 ml - 24450-0
View accessoryDrying Tower and Stopper - 24445-0
View accessoryReceiver 25.0 ml (IP 74) - 24497-0
View accessoryPick, Scraper & Jet Spray Tube - 24446-0
View accessoryCondenser, reflux-type, 40 cm effective length, B19 Cone - 24440-0
