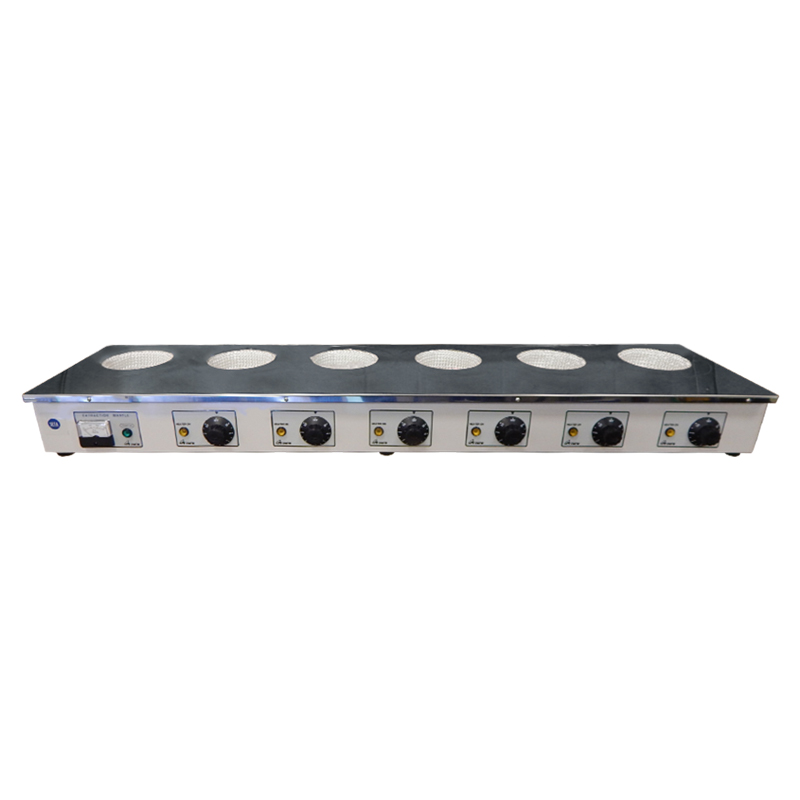

Distillation 500 ml Flask Heater (for up to 6 flasks) - 24540-4
The Seta Distillation Flask Heater is a regulated heating mantel which has the capacity to accommodate up to six 500 ml flasks. It is a general purpose heating mantel designed for laboratory procedures that require precise temperature control.
Each heating element is made of glass fibre which minimises damage to the flask in case of a slight impact between flask and heater. Heating efficiency is promoted greatly with good contact between the heating element and the glass vessel.
Temperature is adjusted by a temperature control dial. A heater power indicator will illuminate when power is applied to the heater element. Once a stable temperature is achieved, the indicator will flash as it applies bursts of power to maintain the temperature.
Distillation 500 ml Flask Heater (for up to 6 flasks) - 24540-4
Features
- Accepts 500 ml flasks
- Six 200 W Mantle type heaters
- Individual energy regulator for each heater
- Complete with support rods
Information
Details
ASTM D95 | Standard test method for water in petroleum products and bituminous materials by distillation |
---|---|
ASTM E123 | Standard Specification for Apparatus for Determination of Water by Distillation |
IP 291 | Water Content of Bitumen Emulsions (Dean and Stark Apparatus) |
BS 756 | Specification for Dean and Stark apparatus |
ASTM D4006 | Standard test method for water in crude oil by distillation |
IP 358 | Crude petroleum - Determination of water - Distillation method (ISO 9029:1990) |
ASTM D244 | Determination of Saybolt, Engler or Redwood viscosities |
BS EN ISO 9029 & BS 2000-358 & ISO 9029 | Crude petroleum. Determination of water. Distillation method |
BS 2000-74 & ISO 3733 | Methods of test for petroleum and its products. Petroleum products and bituminous materials. Determination of water. Distillation method |
IP 74 | Standard test method for water in petroleum products and bituminous materials by distillation |
Details
Voltage | 110/120 V or 220/240 V, 50/60 Hz |
---|---|
Power | 1200 W |
Size (HxWxD) | 15 x 100 x 46 cm |
Weight | 12 kg |
CCCN Code | Tariff 90249000 |
Methods
Industries
Spares and accessories for Distillation 500 ml Flask Heater (for up to 6 flasks) - 24540-4
Glass Flask 500 ml B24 Cone - 24401-0
View accessoryClamp for Glassware (90 mm diameter capacity) - 24520-0
View accessoryReceiver 25.0 ml (for IP 291 only) - 24510-0
View accessoryReceiver 12.5 ml - 24490-0
View accessoryReceiver 10.0 ml with stopcock - 24480-0
View accessoryReceiver 7.5 ml - 24470-0
View accessoryReceiver 5.0 ml - 24465-0
View accessoryReceiver 3.0 ml - 24460-0
View accessoryReceiver 2.0 ml - 24450-0
View accessoryDrying Tower and Stopper - 24445-0
View accessoryReceiver 25.0 ml (IP 74) - 24497-0
View accessoryCondenser, reflux-type, 40 cm effective length, B19 Cone - 24440-0
