Product

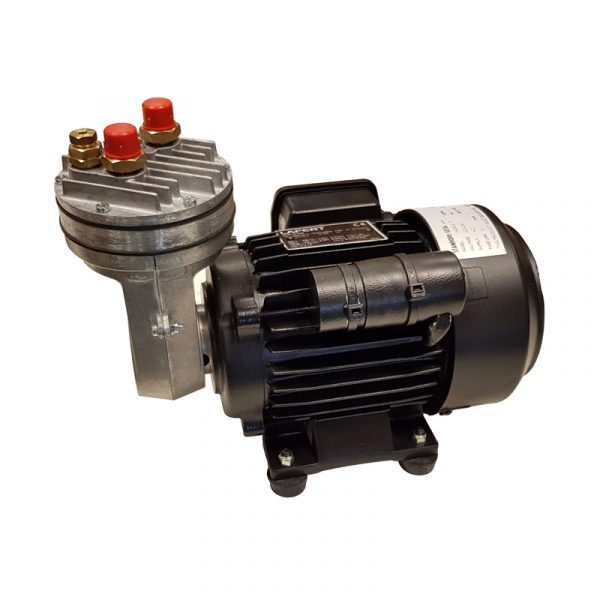

Air Pump - 14030-2
Methods
ASTM D4870
IP 375
IP 390
BS ISO 10307-1
BS ISO 10307-2 & BS 2000-390
For vacuum and pressure delivery. Quiet, oil-free pump for air and non-corrosive gases. Fitted with sintered air intake filter and over-pressure relief valve.
Air Pump - 14030-2
Features
- Medium capacity
- Pressure or vacuum delivery
- For air and non-corrosive gases
- Oil free
- Sintered air intake filter
Information
Details
For use with; Setaclean Total Sediment Tester (16120-2) Steam Generator (16130-3) Low Temperature Bath (94000-3) Supplied with instruction manual.
Details
| BS ISO 10307-1 | Petroleum products. Total sediment in residual fuel Oils. Determination by hot filtration |
|---|---|
| IP 390 | Petroleum products - Total sediment in residual fuel oils. |
| ASTM D4870 | Standard Test Method for Determination of Total Sediment in Residual Fuels |
| IP 375 | Petroleum products — Total sediment in residual fuel oils — Part 1: Determination by hot filtration |
| BS ISO 10307-2 & BS 2000-390 | Total sediment in residual fuel oils. Determination using standard procedures for ageing. |
Details
| Maximum flow | 23 litres/min |
|---|---|
| Maximum vacuum | 67 kPa (9.7 psi) |
| Maximum pressure | 200 kPa (29 psi) |
| Power | 180 W |
| Voltage | 110/120 V, 50/60 Hz 220/240 V, 50/60 Hz |
| Size (HxWxD) | 19 x 23 x 15 cm |
| Weight | 5 kg |
| CCCN Code | Tariff 84141089 |
Methods
ASTM D4870
IP 375
IP 390
BS ISO 10307-1
BS ISO 10307-2 & BS 2000-390
Spares and accessories for Air Pump - 14030-2
